What is a Voltage Transformer? Definition, Working Principle, and Applications in Low, Medium, and High Voltage Systems?

Introduction

If you're working in electrical engineering, industrial automation, or power distribution, understanding what a voltage transformer is and how it functions is crucial. In this blog, we'll explain everything you need to know about voltage transformers—what they are, how they work, why they are used in low, medium, and high voltage systems, and the key factors that influence their performance.

✅ What is a Voltage Transformer?

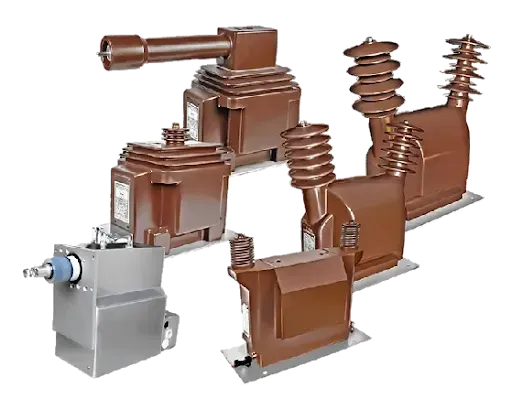

A Voltage Transformer (VT)—also known as a Potential Transformer (PT)—is an instrument transformer used to step down high voltages to lower, standardized levels for measurement, monitoring, and protection purposes.

Voltage transformers are not designed for power transfer, like typical power transformers. Instead, they are precision devices used in electrical systems to ensure that voltage can be accurately measured without directly exposing equipment or operators to dangerous high voltages.

⚙️ How Does a Voltage Transformer Work?

A voltage transformer works on the principle of electromagnetic induction, similar to a standard transformer. It has two windings:

• Primary winding: Connected to the high-voltage circuit.

• Secondary winding: Provides a reduced, proportional voltage output.

This output voltage is typically 100V, 110V, or even lower, depending on the standard and application. The transformation ratio is carefully calibrated so that monitoring and protection equipment (such as voltmeters, relays, and PLCs) can safely and accurately interpret the voltage level of the main power line.

⚡ Why Do We Use Voltage Transformers?

Voltage transformers are used for several key reasons:

1. Safe Voltage Measurement

Directly connecting meters or protection devices to high-voltage lines (such as 11kV, 33kV, or 132kV) is extremely dangerous. A VT provides electrical isolation and reduces the voltage to a safe level for instruments and personnel.

2. Accurate Monitoring and Protection

In power systems, accuracy is critical. A voltage transformer ensures that protection relays, SCADA systems, and energy meters receive a precise voltage representation, essential for fault detection and automation.

3. Compliance with International Standards

Voltage transformers allow systems to adhere to IEC, ANSI, or other international standards, which typically require standard secondary voltages (e.g., 100V or 110V) for measuring instruments.

4. Versatility Across Voltage Levels

• Low Voltage (<1kV): Used in control panels and smart metering systems.

• Medium Voltage (1kV–35kV): Common in industrial substations and local distribution networks.

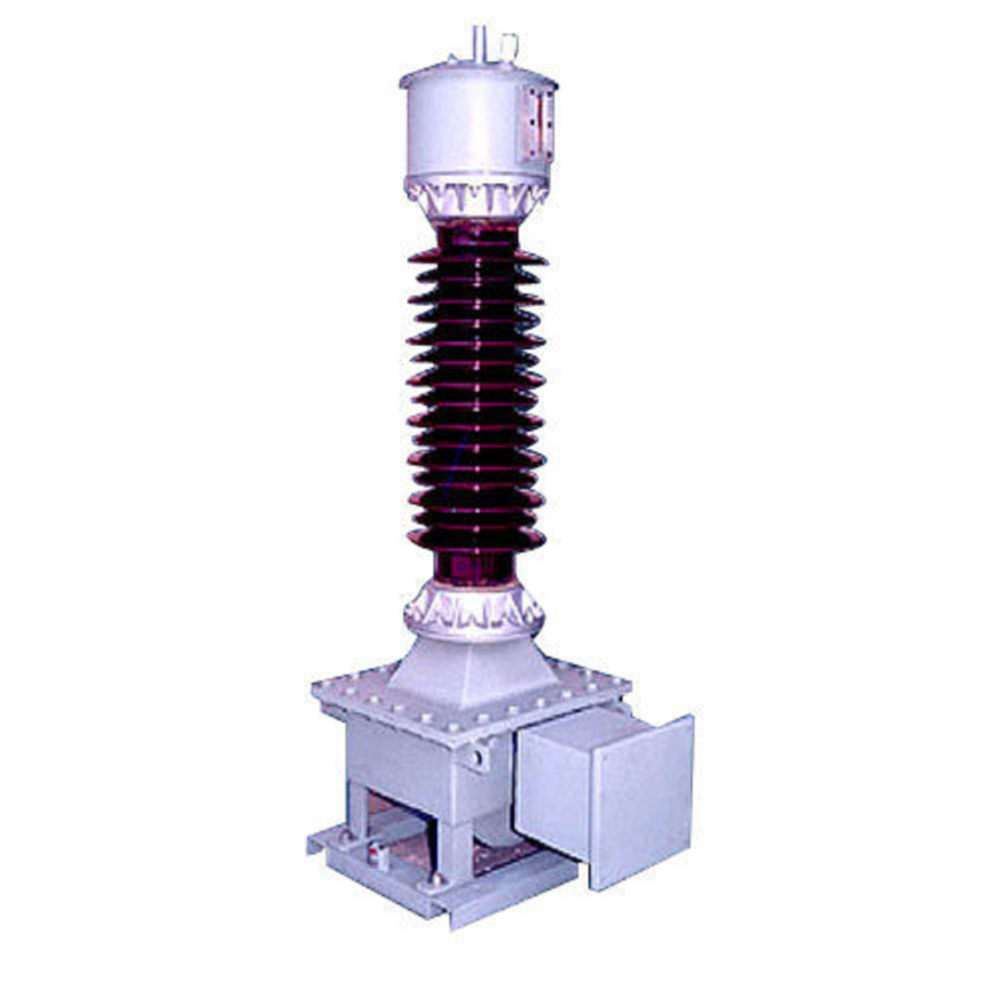

• High Voltage (>35kV): Essential in transmission substations and large-scale grid protection systems.

📌 Key Factors Affecting Voltage Transformer Performance

When selecting or installing a voltage transformer, several factors must be considered:

✅ Accuracy Class

Defines how closely the transformer replicates the actual voltage. Common classes include 0.1, 0.2, 0.5, etc. Lower numbers mean higher accuracy.

✅ Burden (Load)

This is the total load connected to the secondary winding, measured in VA (volt-ampere). Exceeding the rated burden can lead to inaccurate readings.

✅ Insulation Level

Insulation must be suitable for the system's maximum voltage. Higher voltages require stronger insulation to avoid dielectric failure.

✅ Frequency

Most VTs are designed for 50Hz or 60Hz systems. Using them outside of this frequency range can affect performance.

✅ Mounting and Installation Environment

Indoor vs. outdoor installation, humidity, temperature, and pollution levels all affect transformer selection and lifespan.

🏭 Applications of Voltage Transformers

• Substations (LV, MV, and HV)

• Industrial motor control centers

• SCADA and automation systems

• Protection relay panels

• Smart metering and energy monitoring systems

• Switchgear and control panels

🧠 Final Thoughts

Voltage transformers are essential for safe, accurate, and standardized voltage measurement across all levels of the electrical power system. Whether you’re dealing with a small industrial panel or a high-voltage substation, using the right VT improves protection, enhances monitoring, and ensures compliance with standards.
