Mastering Vector Groups in Power Transformers: A Comprehensive Guide with Practical Examples

Introduction to Vector Groups

In power transformers, vector groups are critical to understanding how the windings are connected and how the phase shift between the primary (high voltage) and secondary (low voltage) windings is configured. Knowing the vector group of a transformer is essential for system compatibility, especially in parallel operations where mismatches can cause operational problems such as circulating currents or voltage imbalances.

Importance of Vector Groups

• Phase Displacement: The vector group tells us the phase displacement between the primary and secondary windings. This is critical for synchronization in three-phase systems.
• Parallel Operation: Transformers with different vector groups cannot be paralleled without issues like circulating currents, which could cause efficiency problems or damage the transformer.
• Load Balancing: Some vector groups are better suited for handling unbalanced loads or for reducing harmonics.

Vector Group Notation Explained

The vector group notation uses letters and numbers to describe the winding configuration and phase shift. For example:

• Y: Star (Wye) connection
• D: Delta connection
• Z: Zig-zag connection
• N: Neutral point available

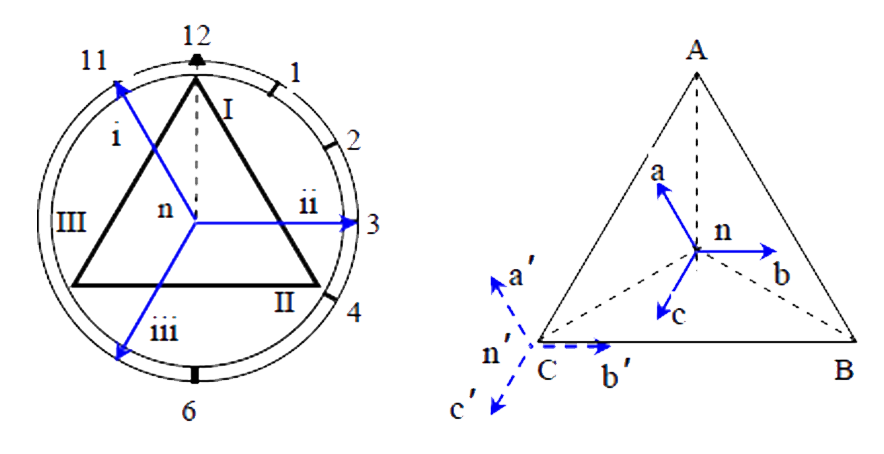

The number indicates the phase displacement between the primary and secondary windings. It is measured in multiples of 30°, and each number corresponds to an hour on a clock face. For instance:

• 0 = 0° phase displacement (12 o’clock)
• 6 = 180° phase displacement (6 o’clock)

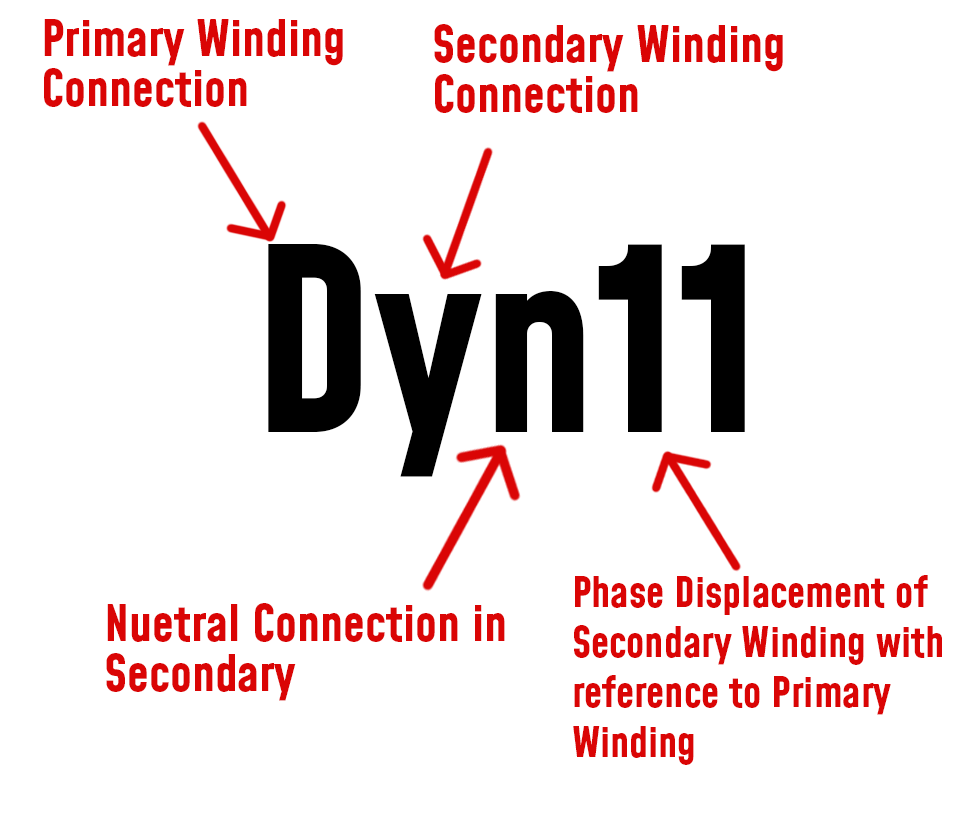

Example of Vector Group: Dyn11

One of the most commonly used vector groups is Dyn11, often found in distribution transformers. Here's what each part of the notation means:

• D: Delta-connected primary winding (high voltage side)
• y: Star-connected secondary winding (low voltage side)
• n: Neutral point available on the secondary side
• 11: Phase displacement of 330° (or -30°) between the primary and secondary voltages

This means that the secondary voltage lags the primary voltage by 30°.

Example of Dyn11 in Practice

Let’s consider a step-down transformer in a power distribution system. Imagine you have a high-voltage line delivering 11 kV (primary side), and you need to step it down to 415 V (secondary side) for local distribution. A Dyn11 transformer would be perfect for this.

• The delta primary allows the system to handle high power and reduces third-harmonic currents.
• The star secondary provides a neutral point, making it easy to supply both single-phase and three-phase loads.
• The lag 30° phase shift helps in balancing the load and mitigating harmonics, making this setup ideal for systems with mixed types of loads, such as residential, commercial, and industrial consumers.

Common Vector Groups and Their Applications

1. Dyn11:

   • Delta primary, Y star secondary, n neutral available, with 11 indicating a 30° lag.
   • Applications: Distribution transformers, especially in systems where harmonic suppression and load balancing are needed.

2. Yyn0:

   • Y star primary and secondary, n neutral available, with 0 indicating no phase displacement.
   • Applications: Transformers that require neutral points for both grounding and system protection, commonly used in earthing transformers.

3. Yd1:

   • Y star primary, D delta secondary, with 1 indicating a 30° phase lead.
   • Applications: Industrial applications, especially where high-voltage step-down is needed, and motors or other heavy equipment are connected to the secondary side.

4. Dd0:

   • Delta primary and secondary, with 0 indicating no phase displacement.
   • Applications: Systems that don’t need a neutral point, often used in industrial settings for balanced loads.

Practical Implications of Vector Groups

Parallel Operation of Transformers

When operating transformers in parallel, their vector groups must match. For instance, if you try to parallel a Dyn11 transformer with a Yd1 transformer, the phase shift difference would lead to circulating currents, potentially damaging the transformers and causing inefficiency in the system. However, if both transformers are Dyn11, they can operate together seamlessly.

Harmonic Reduction

Vector groups like Dyn11 are chosen to reduce harmonics in the system. The phase shift between the delta primary and star secondary helps cancel out third harmonics, making this group highly suitable for distribution networks feeding non-linear loads such as electronic devices.

Neutral Point Availability

Transformers with a neutral (indicated by n) are necessary in systems that require grounding. This is particularly useful in systems with unbalanced loads where the neutral provides a path for returning unbalanced current. For instance, in a Yyn0 transformer, neutral points are available on both primary and secondary sides, making it useful for grounding applications.

Example Scenario: Vector Group Misalignment

Suppose two transformers in a substation are being prepared for parallel operation, but one is Dyn11 and the other is Yd1. Even though both transformers may have the same primary and secondary voltage ratings, the phase displacement between the two vector groups (30° lead vs. 30° lag) would cause issues. If operated in parallel, this would lead to circulating currents, overheating, and potentially damage to the transformers.

Conclusion

Vector groups are a crucial consideration in transformer design and system operation. They ensure that transformers can be connected correctly within a power system and perform efficiently without causing issues like circulating currents or harmonics. Common vector groups like Dyn11, Yyn0, and Yd1 are selected based on the needs of the application, whether it's for distribution, industrial use, or grounding. Understanding and selecting the correct vector group helps optimize transformer performance and system reliability.

Always ensure that transformers connected in parallel have matching vector groups to avoid operational problems and maintain efficient power system management.
