Understanding Current Transformers: Types and Applications

 Current transformers (CTs) are essential components in electrical engineering, used to measure and monitor the flow of electric current in power systems. They provide a safe and effective way to measure high currents by transforming them into a smaller, manageable value for metering and protection devices. In this blog, we will explore what current transformers are, how they work, and the various types available.



What is a Current Transformer?

A current transformer is a device used to produce an alternating current (AC) in its secondary winding proportional to the current in its primary winding. Essentially, CTs scale down high currents to a lower value, allowing for accurate measurement and safe monitoring. They are widely used in power distribution, control systems, and protective relays.



Key Functions of a Current Transformer:

  • Measurement: CTs enable accurate measurement of high currents using standard instruments.
  • Protection: They provide inputs to protective relays, helping to isolate faulty circuits.
  • Isolation: CTs offer electrical isolation between high-voltage power circuits and low-voltage measurement devices.

How Does a Current Transformer Work?

A current transformer operates on the principle of electromagnetic induction. When current flows through the primary winding (which is usually a single conductor or a busbar), it creates a magnetic field around the conductor. This magnetic field induces a current in the secondary winding, which is proportional to the primary current but at a reduced magnitude.

The transformation ratio of the CT is determined by the number of turns in the primary and secondary windings. For example, if the primary winding has one turn and the secondary has 100 turns, the current will be reduced by a factor of 100.

CT Ratio Example:
If a CT has a ratio of 1000:5, it means that for every 1000 amps flowing through the primary winding, 5 amps will flow through the secondary winding.


Types of Current Transformers

There are several types of current transformers, each designed for specific applications. Below are the most common types:

1. Wound Current Transformer



Description:
In wound CTs, the primary winding is physically connected to the circuit, and it consists of multiple turns. The secondary winding is wound on a magnetic core and provides the output current.

Applications:

  • Used in situations where precise current measurement is required.
  • Commonly used in protection systems and metering applications.

Advantages:

  • High accuracy.
  • Versatility in various applications.

Disadvantages:

  • Requires physical connection to the circuit.
  • Bulkier compared to other types.

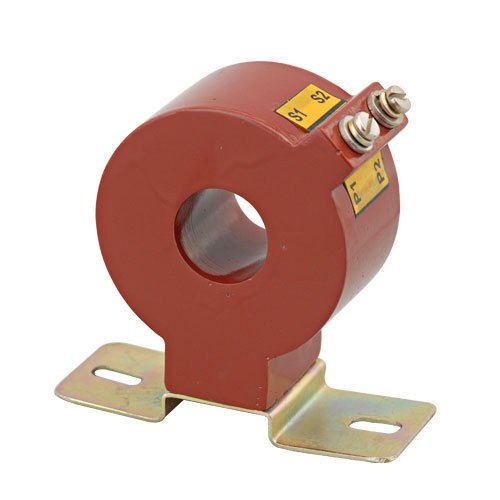

2. Toroidal (Window) Current Transformer



Description:
Toroidal CTs have a circular core with the primary conductor passing through the center or "window." The primary winding is typically a single turn, and the secondary winding is wound around the core.

Applications:

  • Widely used in retrofitting existing systems where the primary conductor is already in place.
  • Common in differential protection and ground fault protection systems.

Advantages:

  • Simple installation, especially in existing systems.
  • Compact and lightweight design.

Disadvantages:

  • Accuracy can be affected by the positioning of the primary conductor.
  • Limited to certain applications.

3. Bar-Type Current Transformer



Description:
In bar-type CTs, the primary winding is a straight conductor or busbar that passes through the core. The secondary winding is wound on the magnetic core, which surrounds the primary bar.

Applications:

  • Common in high-current applications, such as power distribution networks.
  • Often used in switchgear and busbar protection.

Advantages:

  • Suitable for high-current applications.
  • Robust and reliable design.

Disadvantages:

  • Requires physical connection to the busbar or conductor.
  • Larger size compared to other types.

4. Summation Current Transformer



Description:
Summation CTs are used to sum the currents from multiple circuits into a single output. The primary windings are connected to different circuits, and the secondary winding produces a current proportional to the sum of the primary currents.

Applications:

  • Used in systems where multiple feeders need to be monitored together.
  • Common in load monitoring and protection systems.

Advantages:

  • Allows for the monitoring of multiple circuits simultaneously.
  • Reduces the number of CTs needed in a system.

Disadvantages:

  • Complexity in wiring and connections.
  • Potential for reduced accuracy due to summation errors.

Selecting the Right Current Transformer

When selecting a current transformer, several factors must be considered:

  • Accuracy Class: Defines the maximum error at a specified current. Critical for metering applications.
  • Burden: The load connected to the CT's secondary winding. The burden should not exceed the CT's rating to maintain accuracy.
  • Primary Current Rating: The maximum current the CT can handle on its primary winding.
  • Safety: Ensure proper insulation and protective features, especially in high-voltage applications.

Conclusion

Current transformers are vital components in the safe and accurate measurement and protection of electrical systems. By understanding the different types of CTs and their applications, you can make informed decisions when selecting the appropriate CT for your needs. Whether for metering, protection, or monitoring, choosing the right CT ensures the reliability and efficiency of your electrical systems.

Feel free to share this guide with others who might benefit from a deeper understanding of current transformers and their significance in electrical engineering!
